Tonometry and Visual Fields | Rodenstock Perimat 2 Automated Perimeter

  • Rodenstock Perimat 2 Automated Perimeter
  • Rodenstock Perimat 2 Automated Perimeter

The Perimat 2 features a generous selection of threshold, supra-threshold test and kinetic testing in a modern and compact housing that integrates a spacious and portrait screen.

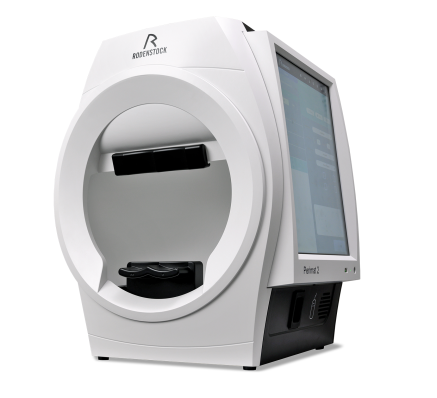

Rodenstock Perimat 2 Automated Perimeter

FEATURES

Test strategies
The TIA strategies highly reduce the test time for enhanced patient comfort.

Advanced eye-tracking
Each stimulus presentation is confirmed by an eye capture and verified by AI
algorithm in a progress bar.

Near vision test
The trial lens power is recommended based upon the patient age and prescription of the examinee. The near vision visual acuity can then be confirmed by the projection of Snellen E into the projection bowl.

Patient audio guide
In the stage of preparation for the test, Perimat 2 guides whether the operator or the examinee by text or audio instructions.

17" HD capacitive touch screen
The HD monitor is arranged in portrait format for greater versatility in terms of control and
for an ideal representation of test reports. The dark mode is a welcome feature for improved
comfort in dim light conditions.

Variety of visual field tests
Perimat 2 is a combined static and kinetic automated perimeter.
The full set of thresholds, suprathreshold and kinetic tests enable to cover almost any
scenarios whenever a visual field test is being performed.

BENEFITS

Short testing time: Enhanced threshold algorithms save time.

Intuitive operation: Efficient workflow and audio guide.

Accuracy: Advanced eye tracking and monitoring.

Competency: Comprehensive test reports and progression analysis.

Versatility: Complete set of threshold, supra-threshold, and kinetic tests.

Consistent quality: Maintenance-free LED illumination ensuring a stability
of the light source over time.

TEST SPECIFICATIONS
Maximum temporal range:90°
Stimulus duration:200 ms/500 ms or 0.1 - 9.9 s
Visual field testing distance:30 cm
Background illumination:31.5 ASB White/10 ASB White/315 ASB Yellow

STIMULUS
Stimulus size:Goldmann I, II, III, IV, V
Stimulus colour:White/Green/Red/Blue
Stimulus colour presentations:White-on-white
 Red-on-white, green-on-white, blue-on-white
 Blue-on-yellow (SWAP)

TEST STRATEGIES
ThresholdTIA-Standard, TIA-Fast, TIA-Superfast, TIA-SWAP, Full Threshold,
 Fast Threshold, Foveal Threshold
SuprathresholdTwo Zone, Three Zone, Quantify Defects

DEVICE FEATURES
Display:17" HD capacitive touch screen
Keyboard/mouse support:Yes
Network:LAN and wireless
Chinrest:Automated – up, down, left, right movement
Speakers and microphone:Built-in

DIMENSIONS
Dimensions WDH566 x  396 x 633 mm
Weight24 kg
